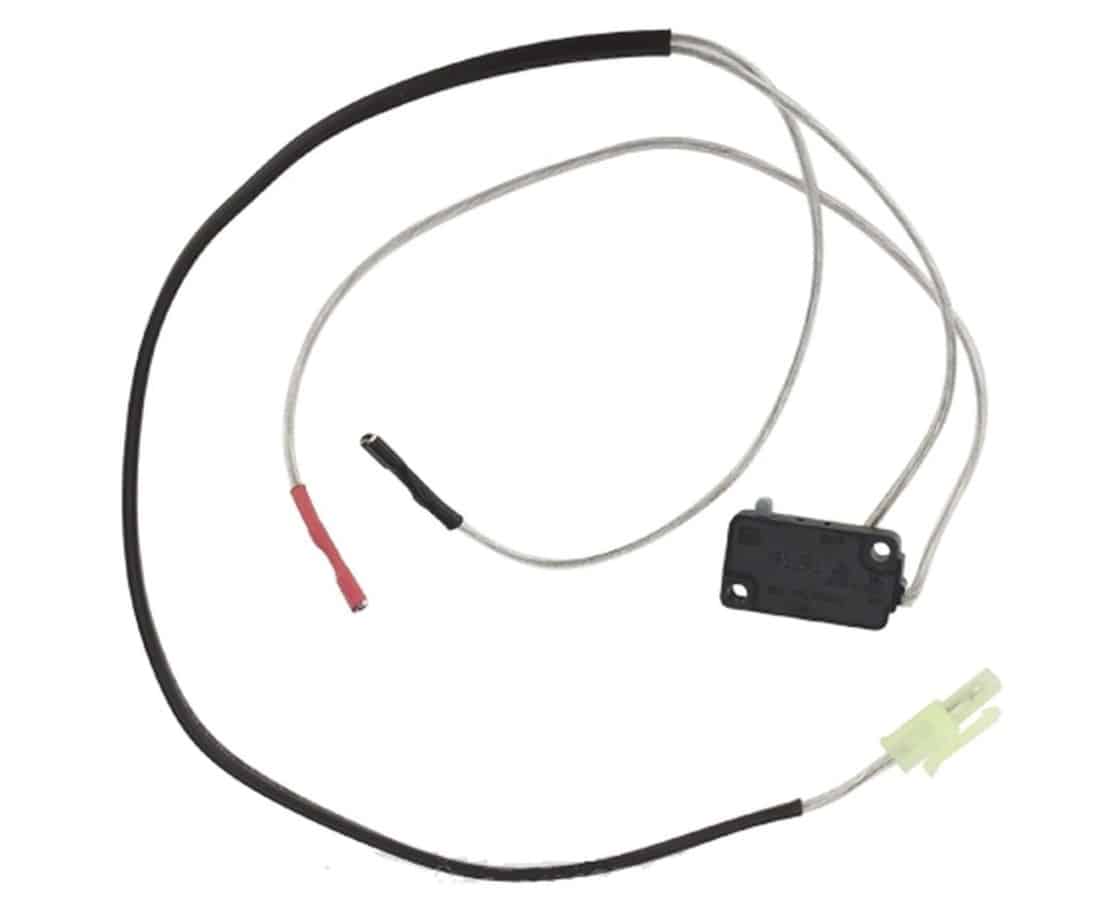

ZCI Micro-Switch Trigger Wire Assembly – Rear Wired

The ZCI Micro-Switch Trigger Wire Assembly is a pre-assembled wiring harness designed to simplify gearbox upgrades and repairs on M4 AEGs equipped with micro-switch trigger units. This ready-to-fit solution eliminates the guesswork of custom wiring and soldering, making it ideal for both builders upgrading trigger responsiveness and technicians servicing gearboxes.

Key Features

• 16 AWG silver-plated silicone wire – reduced resistance for faster trigger response and improved current delivery
• Pre-soldered quick disconnect spade connectors – tool-free assembly and field-swappable components
• Motor connectors pre-attached – no additional soldering required
• Pre-measured wire lengths – designed for M4 AEG rear-wired configurations
• Micro-switch compatible – works with standard M4 gearboxes using micro-switch trigger designs

Real-World Use Cases

Skirmishers upgrading trigger response for faster fire will benefit from the low-resistance silver-plated wire, which improves electrical efficiency and reduces voltage sag. Tech builders tackling mid-project gearbox work will save time by avoiding custom wire measurement and soldering. Players with multiple M4s can standardise their trigger setups using this proven assembly.

Technical Specifications

• Wire gauge: 16 AWG
• Wire type: Silver-plated silicone
• Connector type: Quick disconnect spade connectors (trigger) and motor connectors
• Compatibility: M4 AEGs with micro-switch trigger units (rear-wired configuration)
• Pre-assembly: Fully soldered and tested

Compatibility & Upgrades

This assembly is designed for M4 platforms using micro-switch trigger mechanisms in a rear-wired setup. Confirm your gearbox uses a micro-switch trigger design before ordering. Compatible with standard 11.1V and 7.4V LiPo batteries; performance gains are most noticeable with higher-discharge LiPo setups. Pairs well with upgraded motors and mosfets for comprehensive trigger response improvement.

UK Legal & Site Notes

As a wiring harness component, this assembly is unrestricted. Installation is straightforward for intermediate builders; if you’re unsure about gearbox wiring, consult your local tech or our support team. Always disconnect the battery before working inside the gearbox.

Upgrade your M4’s trigger response with ZCI’s pre-soldered micro-switch trigger wire assembly. Order from Airsoftdirect UK today.
